Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | H25E-F1-SS-1024-ABZC-15V/V-SC18-S |
| IP Rating | IP66 |
| Mounting Type | Face Mount |
| NEMA Rating | 4 ; 13 |
| Number of Channels | 2 |
| Orientation | Side |
| Output Type | Quadrature |
| Pulse Per Revolution | 1024 PPR |
| Rotational Life | 200 M Cycles |
| Series | |
| Shaft Size | 3/8" |
| Special Features | Dual Channel w/Index ; Side Termination |
| Supply Voltage | 5-28 V |
| Technology | Optical |
| Termination | M18 |
| Type | Incremental |
Overview

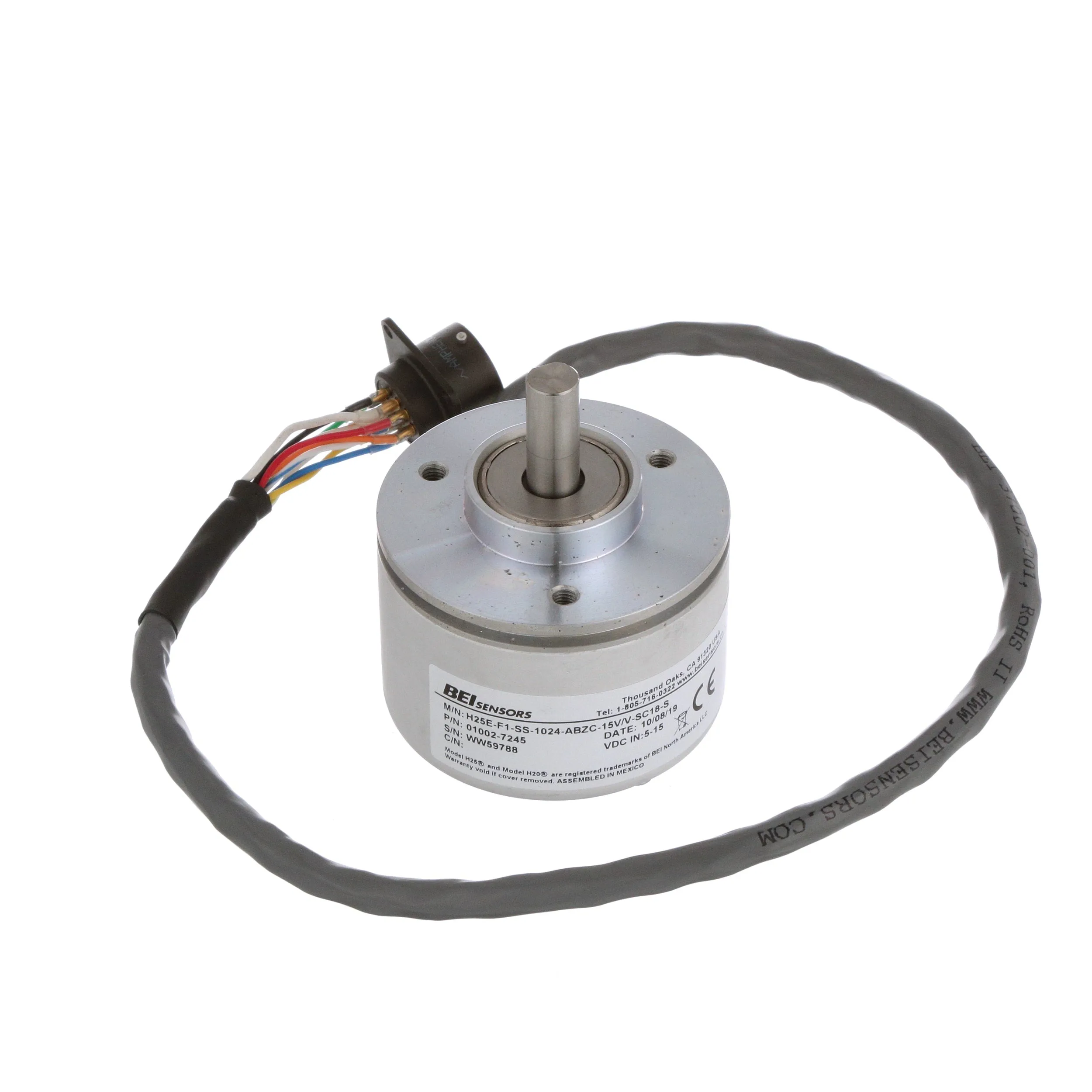

BEI Model H25 Incremental Encoders
H25 Incremental Optical Encoders are the flagship of the BEI Sensors product line. Designed from the ground up, they provide instantaneous information on the position of a rotating shaft by producing one square wave cycle per increment of shaft movement. This increment is referred to as the resolution of the encoder and is built directly into the internal hardware of the device on the code disc. By rotating this code disc in the path of a light source, it acts like a shutter and alternately shuts off or transmits the light to a photodetector. By counting this number of cycles, you can tell the position of the shaft, relative to its starting position.
