The NEW EVO II Version 3
This is NOT backwards compatible with any other remote controls. It will work with existing EVO II Batteries.
Evo II Pro 6K RTK Rugged Bundle V3
CENTIMETER-LEVEL POSITIONING
The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
- RTK Horizontal Positioning Accuracy: 1cm 1ppm
- RTK Vertical Positioning Accuracy: 1.5cm 1ppm
- 5cm* absolute horizontal accuracy of photogrammetric models
*2.74 cm GSD when flying at 100 m height, Inertial Explorer for post processing
No GCP Required
EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centimeter grade accuracy.
3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP compatible base stations.
Robust Partnerships
- Pix4d
- DroneDeploy
- Propeller
- Skyebrowse
- SkyLine
Autel Explorer for Mapping - Advanced Feature Sets
- Create Rectangular or Polygon Missions
- Supports Double grid mapping for additional angles
- Non stop turning on corners saves time and battery life
- Customizable course headings to meet all user flight orientation requirements
- Have complete manual control over camera settings
Multi-NTRIP Profile Saving
The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info every travel.
Multi-Battery Missions
The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.
Photo Replication
For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
- Replication 3
- Replication 2
- Replication 1
- First shot
Specifications
| Aircraft | |
| Weight (with propeller and battery) | 2.75 lbs (1250g) EVO II DUAL 640T RTK V3 2.73 lbs (1237g) EVO II PRO RTK V3 |
| Size | 230*130*143mm（folded） 260*355*143mm（unfolded） |
| Max flight time | 36 min (Windless environment) |
| Operating temperature range | 14-104°F (-10-40°C) |
| Wind Resistance | Force 8 wind |
| Hovering accuracy | When RTK is enabled and RTK works normally: Vertical: ± 0.1m Horizontal: ± 0.1m |
| RTK is not enabled: Vertical: ±0.1m (with visual positioning in normal operation) ±0.5m (with GNSS in normal operation) Horizontal: ±0.3m (with visual positioning in normal operation) ±1.5m (with GNSS in normal operation) | |
| GNSS | |
| Single frequency high sensitivity GNSS | GPS BeiDou Galileo (Asian Region) GPS GLONASS Galileo (Other Region) |
| Multi-frequency multi-system high-precision RTK GNSS | Frequency points used: GPS: L1/L2 GLONASS: L1/L2 BeiDou: B1/B2 Galileo:E1/E5 |
| First positioning time: <50s | |
| Positioning accuracy: Vertical: 1.5cm 1ppm* (RMS) Horizontal: 1cm 1ppm (RMS) *1ppm means that the error increases by 1mm for every 1km of the aircraft moving | |
| RC and Image Transmission | |
| Max Transmission Distance (unobstructed, free of interference) | FCC：15km CE：8km |
| Display screen | 2048x1536 60fps |
| Operating time | ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) |
| Charging time | 120 minutes |
| Internal Storage | ROM 128GB |

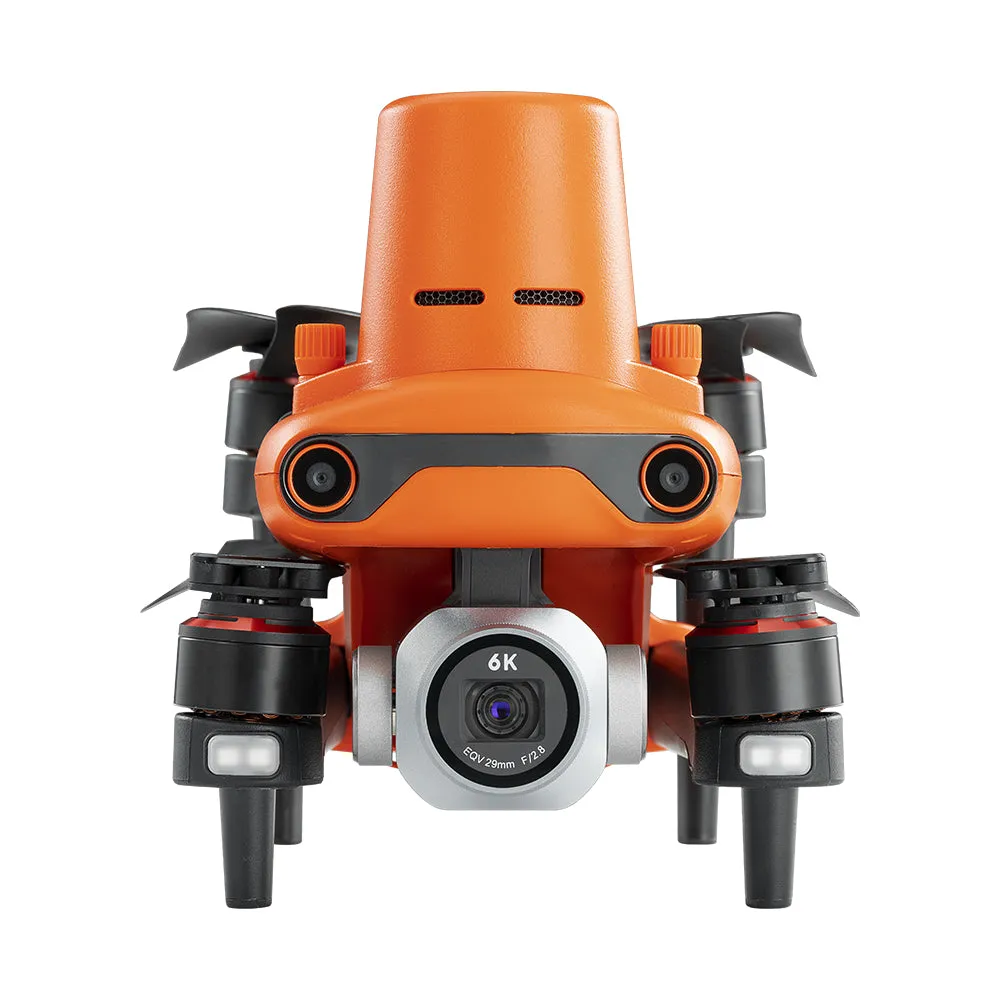

| EVO II Pro RTK V3 Camera | |
| Sensor | 1 inch CMOS; 20M pixels |
| Lens | FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
| ISO range | Video: 100-44000 Photo: 100-6400 |
| Zoom | 1-16x (up to 3x lossless zoom) |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |

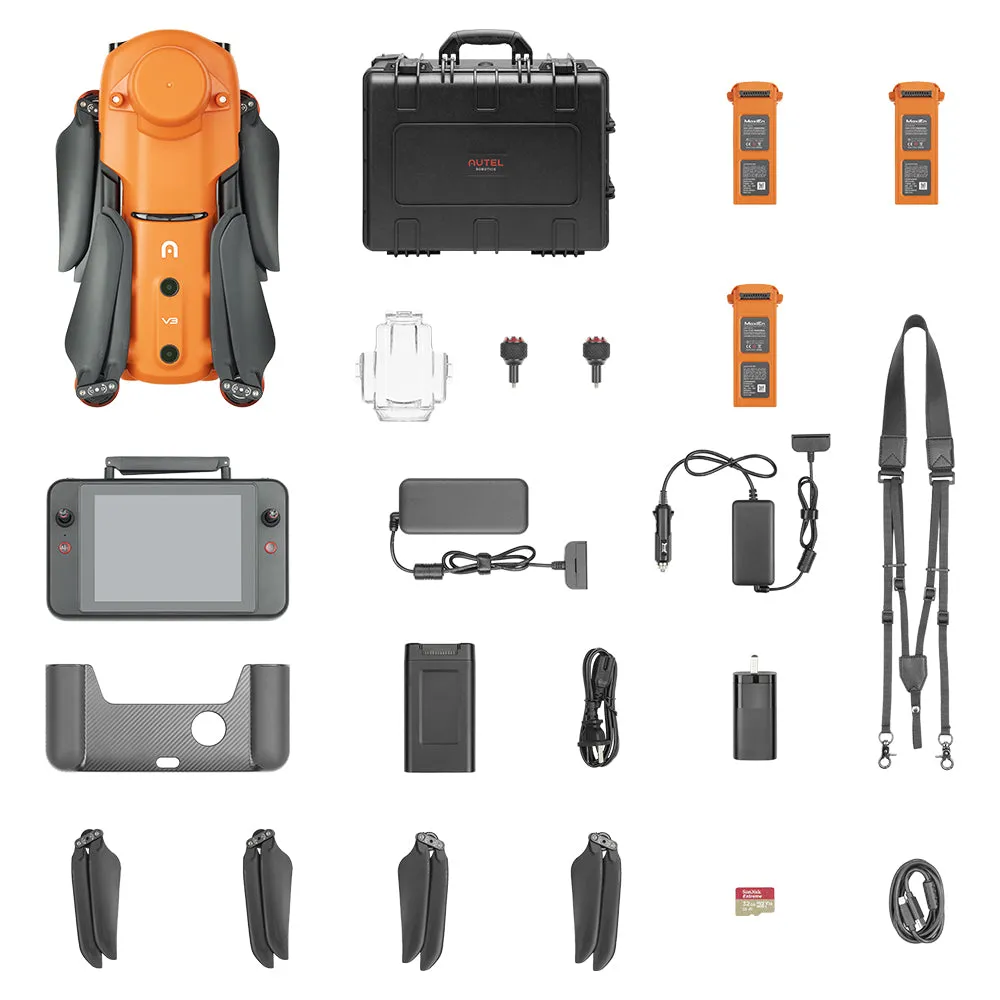

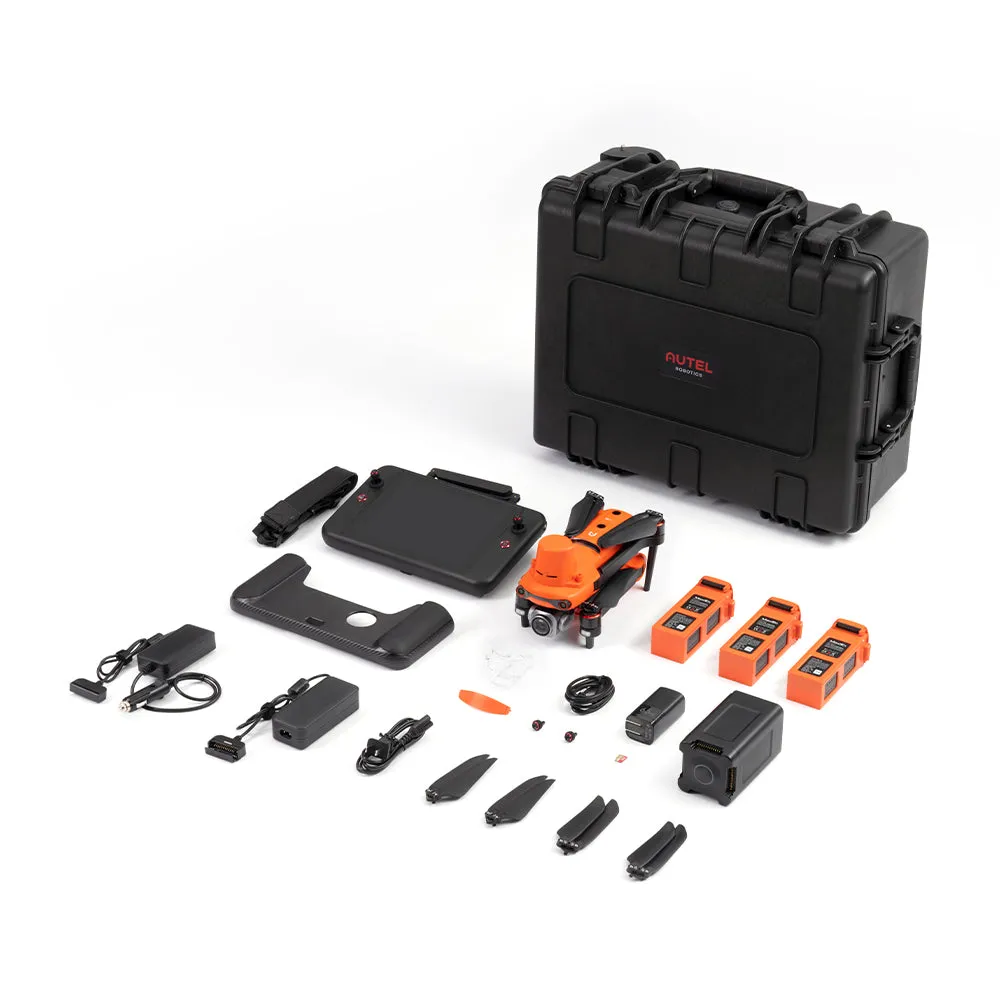

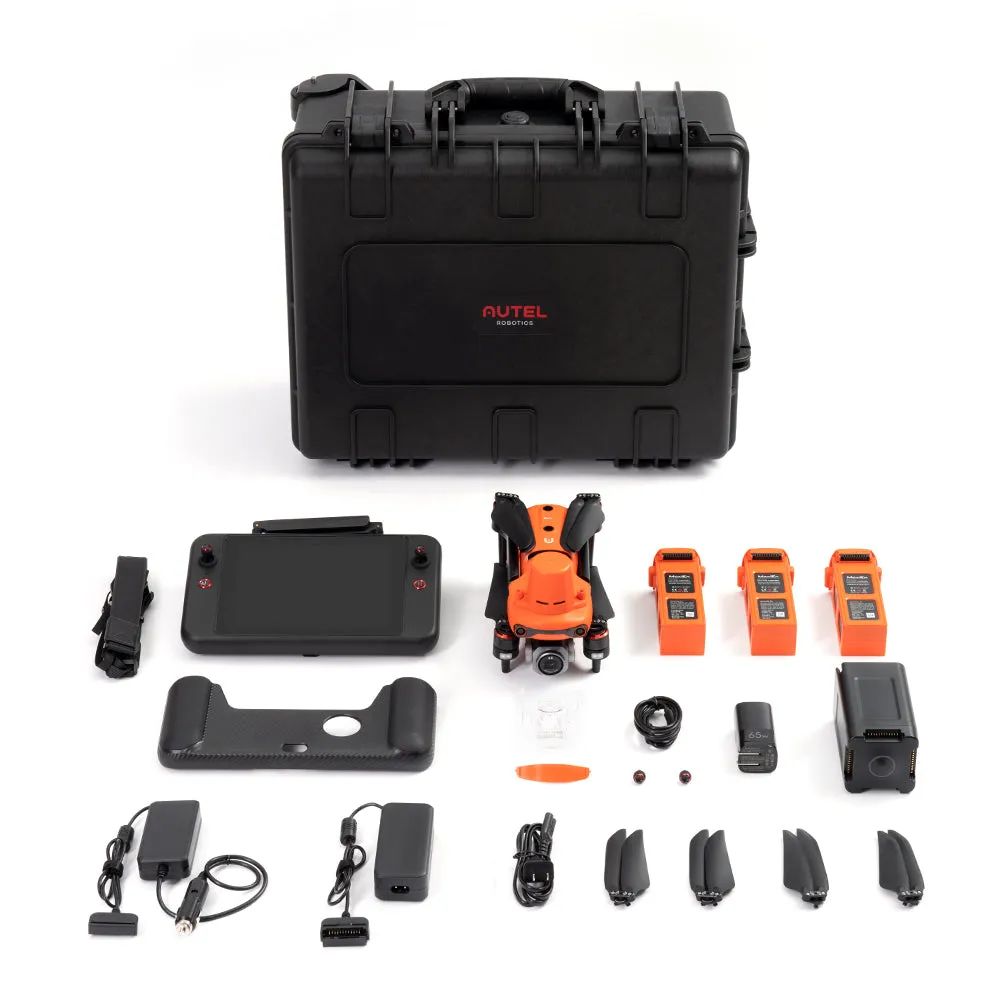

In The Box
| Evo II V3 Pro RTK Rugged Bundle | Quantity | |||
| Aircraft (including battery, propellers, RTK Module, and gimbal cover) | 1 | |||
| Autel Robotics V3 7.9" Smart Controller (with controller case) | 1 | |||
| Spare Propellers (pair) | 2 | |||
| Smart Controller USB-C Charging Cable & Power Brick | 1 | |||
| Battery Charger (Wall Cord and Power Converter) | 1 | |||
| Spare Battery | 2 | |||
| Spare Controller Sticks | 1 Set | |||
| 32 GB SD Card | 1 | |||
| Smart Controller Hanging Neck Strap | 1 | |||
| RTK Module Attachment Port Cover | 1 | |||
| Evo II Battery Car Charger | 1 | |||
| Evo II Battery Multicharger | 1 | |||
