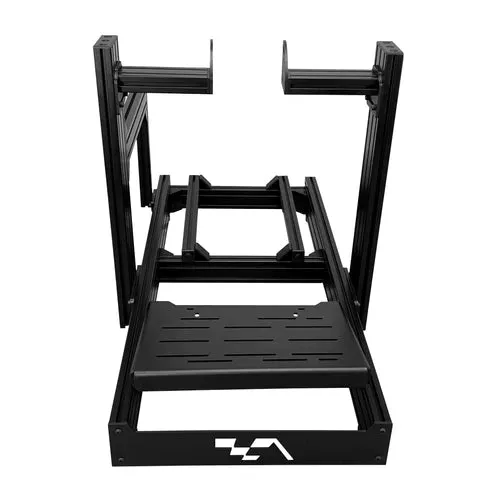

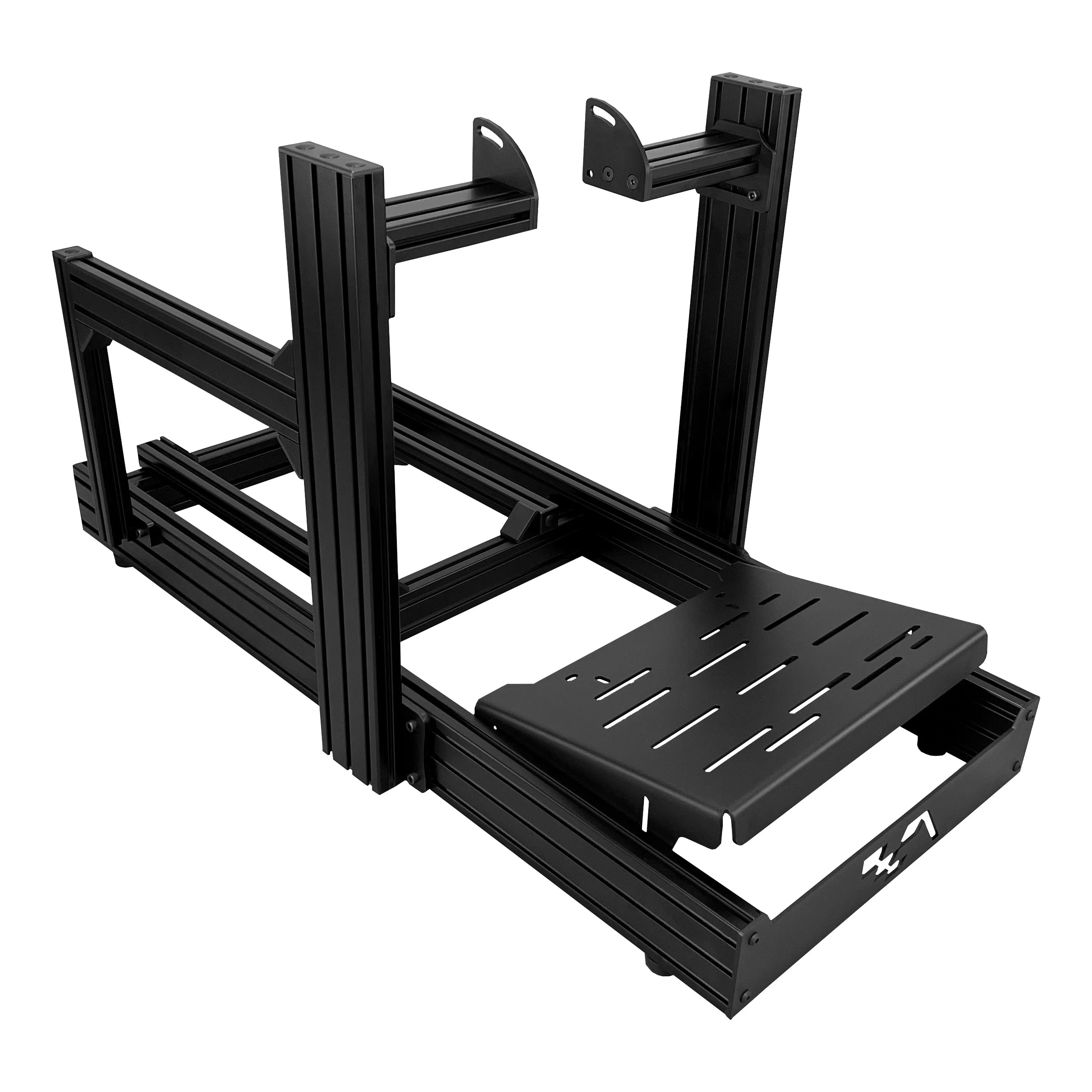

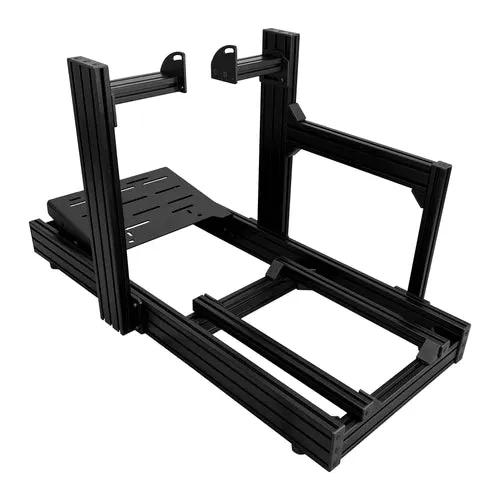

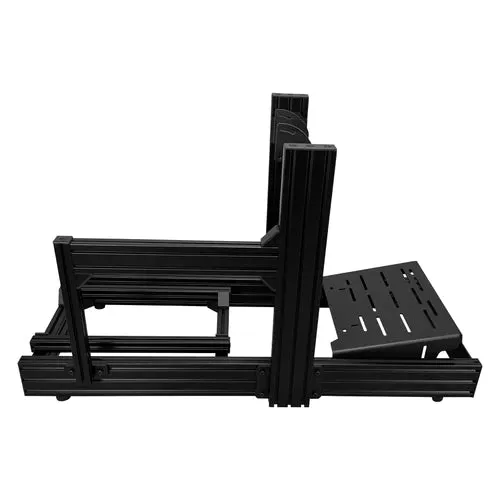

DESCRIPTION

• The ASR 4 is our high-end SimRacing chassis with a 4.5" aluminum base and reinforced steering column.
• Its 4.5" aluminum base will give you more height and stability, ensuring optimal performance from the most powerful SimRacing peripherals.
• Zero flex and no weak points design philosophy.
• The ASR 4 is readily available in Matte Black (Powder Coat) and our exclusive Infinite Black powder coat color. Our proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Made from top-grade alloy Aluminum sourced in the United States of America
• Produced and packaged in Canada with the utmost care and attention.
• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.
• The included pedal plate is fully adjustable in height, angle, and mounting position on the chassis to help you achieve a comfortable position.
• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
• Four Wheel Deck options available :

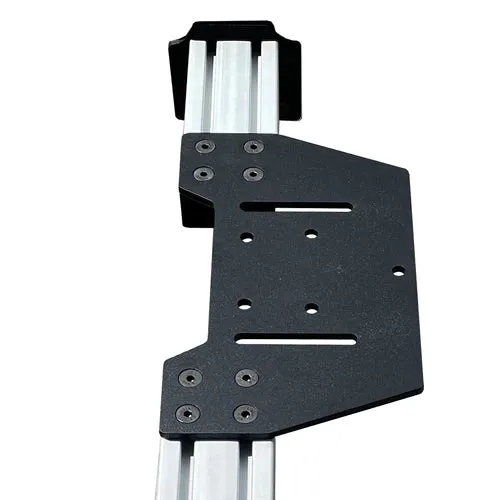

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)

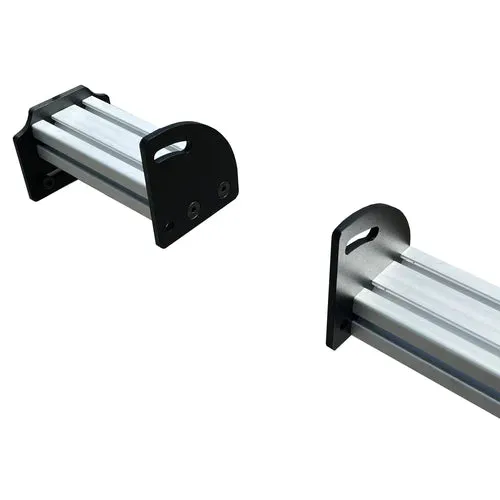

• Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)

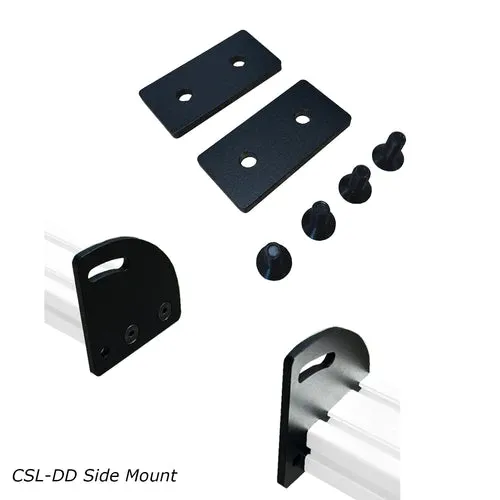

• CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)

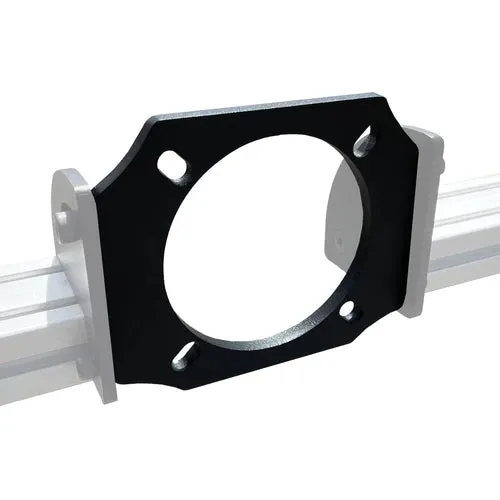

• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
• Two Pedal Tray options available
• Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest

SPECIFICATIONS

• Base composition : 4.5" x 1.5"
• Steering column composition : 4.5" x 1.5"
• Base length : 50"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 29"
• Weight when assembled (w/o accessories): 116lbs.

WHAT'S INCLUDED?

• Box 1 (Aluminum) 50" x 5" x 5"
• 1 x Aluminum profile 50" x 4.5" x 1.5"
• 1 x Aluminum profile 28" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"
• Front plate with Advanced SimRacing crest

• Box 2 (Aluminum) 50" x 5" x 5"
• 1 x Aluminum profile 50" x 4.5" x 1.5"
• 1 x Aluminum profile 28" x 4.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"

• Box 3 (Aluminum) 22" x 5" x 3"
• 2 x Aluminum profile 22" x 1.5" x 1.5"
• 1 x Aluminum profile 16" x 1.5" x 1.5"
• 1 x Aluminum profile 19" x 3" x 1.5"

• Box 4 (Hardware) 10" x 8" x 4"
• 16 x Corner Gussets and Plastic Caps
• 44 x M8 Screws (16mm)
• 10 x M8 Screws (20mm)
• 4 x M8 Screws (12mm)
• 10 x M8 Flathead Screws (20mm)
• 4 x 5/16" Screws for filted ends (16mm)
• 68 x M8 T-Nuts
• 2 x Side mounting plate (6" x 4.5")
• 1 x Side mounting plate (4.5" x 1.5")
• Endcaps

• 4 x 4.5" Endcaps
• 5 x 1.5" Endcaps
• 1 x 3" Endcaps
• 20 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Tuts

• Box 5 (Wheel Deck selection) 13" x 10" x 3"
• Depending on your selection : Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x Aluminum profile 7.5" x 3" x 1.5"

• Box 6 (Pedal Support) Depending on your selection
• Steel Pedal Plate - 19" x 16" x 4"
• 1 x 3/16" Steel Pedal Plate
• Aluminum Pedal Deck & Heel Rest - 20" x 9" x 6"
• 2 x Aluminum profile 18.5" x 3" x 1.5"
• 2 x 1/4" Side Steel Plates
• 1 x 1/8" Steel Heel Rest
• 12 x M8 Socket Cap Screws (16mm)
• 4 x M8 Screws (12mm)
• 8 x M8 T-Nuts
• Adjustable Legs & Rubber Feet (Set of 4)
• 4 x Steel plates
• 4 x Rubber feet (2" in diameter) on M8 rods
• 8 x M8 Screws
• 8 x M8 T-Nuts

COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R16, R21
• MOZA R5 (Only back two bolts)
• Fanatec (Podium DD & CSL DD Side Mount)
• Fanatec Podium Wheel Base DD1 & DD2
• Fanatec GT DD Pro
• Fanatec CSL DD
• Asetek (Front Mount)
• All Asetek Wheel base
• Simucube & MiGE Motor (Front Mount)
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Steel Pedal Plate
• Asetek SimSports Invicta & Forte Sim Racing Pedals
• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate
• Thrustmaster products
• Fanatec
• ClubSport V3
• CSL
• CSL Elite
• Not compatible with the CSR Pedals
• Logitech products
• Simtrecs ProPedal GT
• And much more (please inquire for specific pedal sets)
• Aluminum Pedal Deck & Heel Rest
• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate
• MECA Cup1
• MECA EVO1
• Simagic P2000
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Atrax Black Formula
• Venym Black Widow
• Cube Controls SP01
• HPP JBV 2/3 Pedal System ( required)

• And many more (please inquire directly with us for specific pedal sets)
• NOT COMPATIBLE with the Logitech G29 pedal set or the Fanatec ClubSport Pedals V3

ASSEMBLY GUIDE

SHIPPING AND LEAD TIME

• FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
• IMPORT DUTIES COVERED for U.S.-based customers.
• We ship from Montreal in Canada
• Our typical lead time before shipping out orders is 7 to 10 business days. This varies depending on the purchased items and our shipping queue.

• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

WARRANTY

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact [email protected] for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
